Technology

Technology

Toolmaking workplace

Electro erosive machining

Wire cutting machine Excetek V 1060
Drátová řezačka
  • feed of the axis’s X,Y,Z 1000x600x500mm
  • feed of the axis’s U,V 260×260
  • max. angle of the cut +-30°/100mm

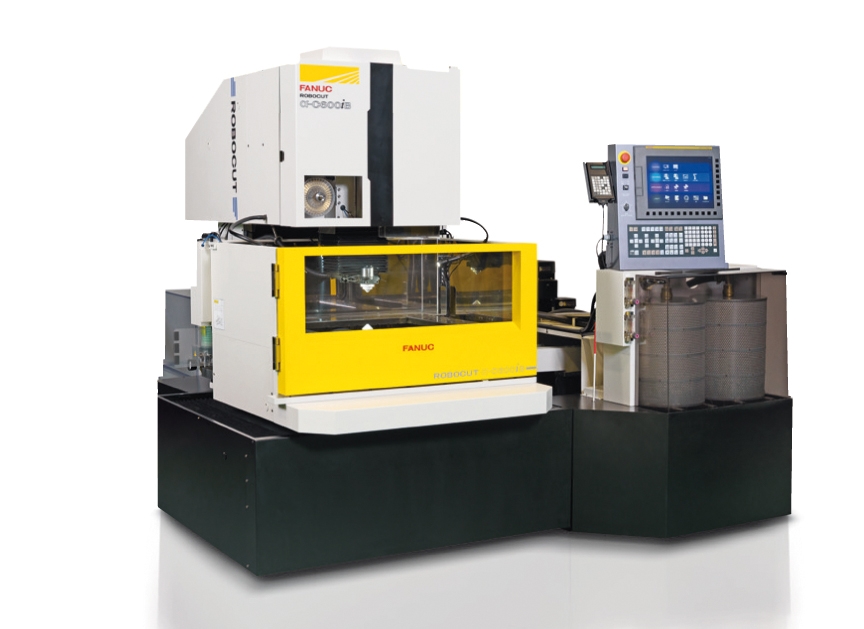

Wire cutting machine FANUC ROBOCUT C600IB
  • feed of the axis’s X,Y,Z 600x400x310mm
  • feed of the axis’s U,V 200×200
  • max. angle of the cut +-30°/150mm

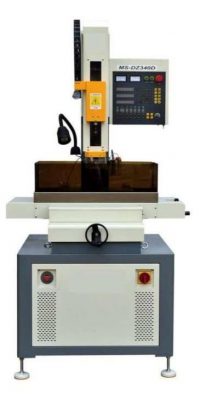

EDM Hole Drilling Machine
startovačka
  • feed of the axis’s X,Y,Z 400x300x320 mm
  • electrode diameter  0,5 – 3mm

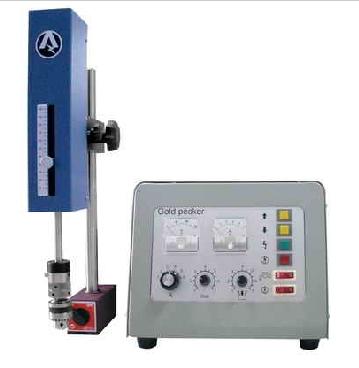

Portable Drill LS 100 EDM

Toolmaking workplace

Milling CNC machines

PINACLE VMC 2000S
CNC stroje
  • PINACLE VMC 2000S
  • max. revolution of the spindle 12000rev/min
  • travel in the axis X 2000mm
  • travel in the axis Y 900mm
  • travel in the axis Z 850mm
  • max. weight of the workpiece 3000kg
LEADWELL V50-L
CNC stroje
  • max. revolution of the spindle 12000rev/min
  • travel in the axis X 1270mm
  • travel in the axis Y 635mm
  • travel in the axis Z 610mm
  • max. weight of the workpiece 1000kg
STROJTOS VMC 80/40
CNC stroje
  • max. revolution of the spindle 9000rev/min
  • ptravel in the axis X 800mm
  • travel in the axis Y 400mm
  • travel in the axis Z 500mm
  • max. weight of the workpiece 500kg
TURNING AND HINGED TABLE FOR 5D MILLING
Nástrojárna Kouty
  • clamping board of the table φ500mm
  • hinging +120° ; -120°
  • max. weight of the workpiece 400kg

Toolmaking workplace

Lathe CNC machines

FERMAT SF 55/2000
CNC stroje
  • max. machining diameter φ550mm
  • max. machining length 2000mm
CUTEX 160 B
CNC stroje
  • max. machining diameter φ300mm
  • max. machining length 300mm
LEADWELL LTC-25iSMY
CNC stroje
  • max. machining diameter φ436mm
  • max. machining length 725mm
  • max. diameter of rod material φ77mm
  • * powered tools
  • * magazine and feeder of the material

Toolmaking workplace

Grinder CNC

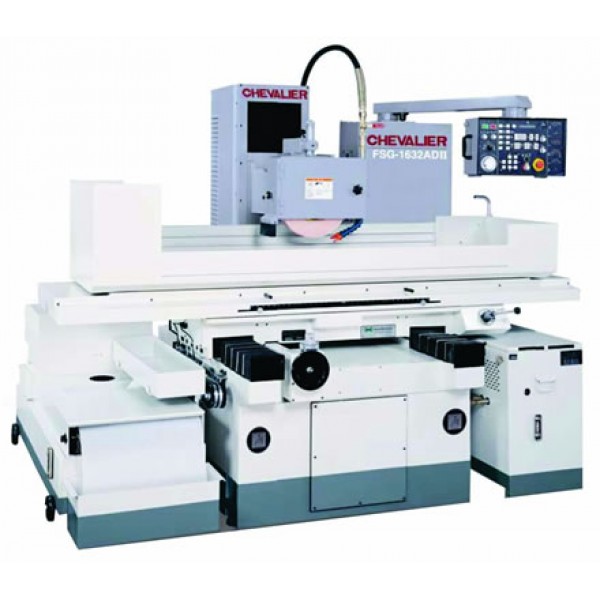

CHEVALIER FSG-1632 AD III
  • Size of the table 800x400mm

Toolmaking workplace

Measuring and control

ALTIMETER PRECIHITE ULTRA
  • Measuring extent V=600mm
  • Definition +-0.001mm
Výškoměr
3D MEASURING ARM ROMER MULTI GAGE
  • Measuring extent 1200mm
  • Definition +-0.005mm
  • * software PC-DMIS
  • * creation of a measuring protocol
roomer
